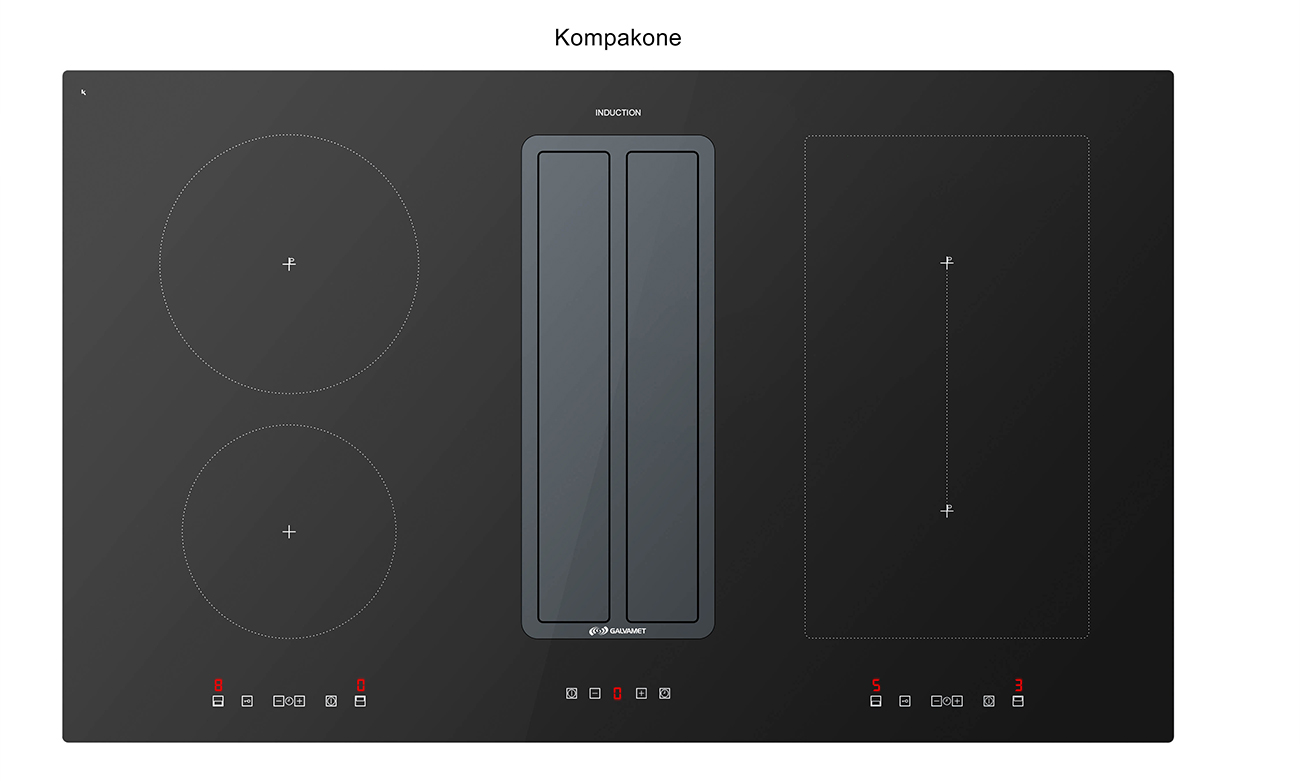

Kompakone

Decades of experience in building the best cooker hoods, meets induction technology, adopting unique solutions in the aspiration induction hobs scenario. On the cutting edge of suction power, easy and universal to install, safe in everyday use and marked by an essential and elegant look. Kompak is the new way of living your kitchen.

INDUCTION HOB

Dimension

86 x 52

Finishing

Black glass ceramic

Cooking zones

4

Zone 1

2,1 – 3,0 kW

Zone 2

1,6 – 1,85 kW

Zone 3

2,3 – 3,0 kW

Zone 4

1,4 – 2,1 kW

Total absorption

7,4 kW

Bridge zones

1

Power levels

9

ASPIRATION SYSTEM

Max airflow

651 m3/h

Total absorption

275 W

Sound power

61 dB(A)

Controls

Touch screen 3S + B

Energy Class

A

Play Video
  • KOMPAKONE

Extra aspiration system

  • Adjustable and delayed self-switching off. This function allows you to programme delayed cooker hood shutdown which, in the shortest time possible, provides the right level of air purity in your kitchen.
  • Light indicator for grease filter maintenance. The cooker hood automatically informs you when the metal grease filter designed for trapping grease in the air requires cleaning.
  • Long Life odor filter regeneration warning: the Long Life odor filter captures all the smells present in the cooking fumes, guaranteeing pure air in your kitchen. It does not need to be replaced as frequently as a normal activated carbon filter, it can be regenerated every 3-4 months, and in any case according to the frequency of use of the hood, with a usual washing in the dishwasher at about 70 ° C without any type of detergent, followed by drying in the oven for 30 minutes at 70 ° C. To keep its efficiency high, it is recommended to replace the Long Life filter after 6/8 regeneration cycles.
  • High quality Stainless Steel AISI 304 for the frame and the flaps, the polished finishing allows an easy and fast cleaning. The entire structure is composed by wear and heat resistant materials, no detail is in plastic!
  • Push-pull opening at controlled speed. Thanks to the possibility to individually start the flaps, it is possible to select the aspiration area for each active cooking zone. This ensures, with equal suction of a traditional system with grid, that the engine speed is reduced with less consumption and noise.
  • While aspiration is not active, closed flaps prevent the accidental fall of food, or objects. It also prevents bad odors exit due to grease deposits contained in the cooking fumes retained by the grease filter.
  • No visible detail is removable or needs to be washed in the dishwasher. This prevents frequent washings causing color alterations or damages as might happen with other systems available on the market.
  • The anti grease filter and the grease drip tray are easily removable and reinsertable from the top after opening the right flap. They can be washed in the dishwasher.
  • Cleaning the interior parts of the hood is also simple thanks to the side opening with magnetic closure.
  • Not only excess liquids resulting from accidental fall during cooking, but above all the liquid due to condensation, are collected inside the liquid collection pan. An easy-to-open valve allows a simple discharge of the excess liquids.
  • Day after day, condensation accumulates inside the hood, an electronic sensor signals the display of the highest level in the liquid collecting pan. The device stops aspiration until discharge preventing liquids from being sucked out of the engine by damaging it.

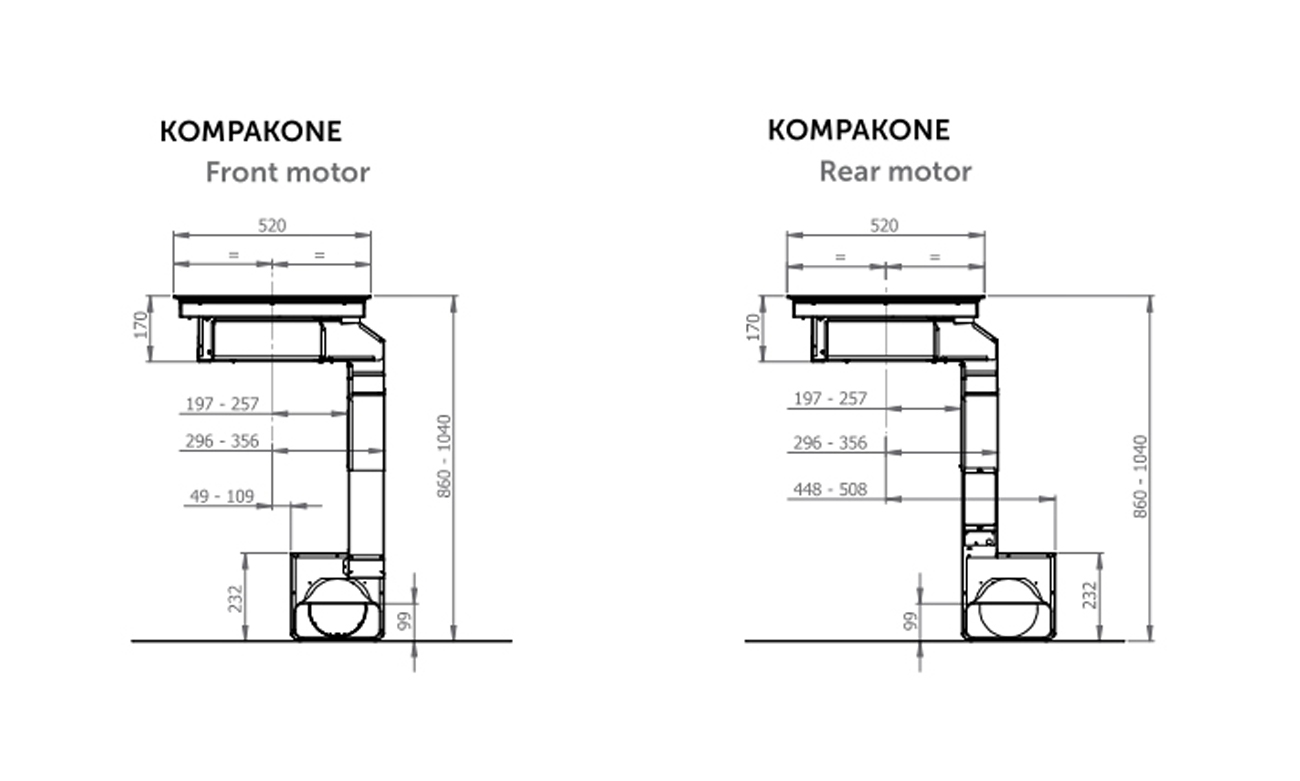

  • Adaptability and freedom of project, the device is adaptable to any type of space thanks to the telescopic height and depth. The air outlet can rotate 360 ° so to choose the right direction. In addition, the entire engine box can rotate 180 ° to be placed behind the cabinet, allowing full use of space inside the base.
  • Strategic position of the motor, the motor located inside the plinth ensures an easy reparation of the engine itself or of the induction hob. In fact, it is possible to repair the induction without removing the hob from the worktop neither the hood. Even the engine noise is significantly reduced due to the location away from the user and the drawers that shield it.
  • Duct out/Recycling, with a simple kit (optional) the hood can be switched from ducting out (with tubes) to recycling (without tubes). The kit can be either with Long Life activated carbon (regenerable in the oven) or with the new Plasma technology

extra induction hob

  • Touch screen control
  • Residual heat indicator
  • Pause function and recall (right cooking zone)
  • Pots detector
  • Fast cooking function
  • Over-heating protection
  • Child lock
  • Operating time limitator
  • Keep warm function
  • Fast automatic heating
  • Timer

Optional

  • Filtering kit with Long Life filters (for up to 6 cm high kitchen plinth). Cod. 005KMP030102
  • Filtering kit with Long Life filters (for 10 cm high kitchen plinth).Cod. 005KMP030101
  • Plasma filtering Kit (for kitchen plinth from minimum 6cm). Cod. 005KMP030201
  • Ducted out installation kit (for up to 6 cm high kitchen plinth). Cod. 005KMP040000
